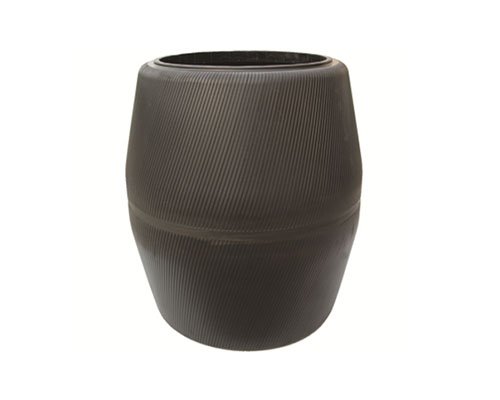

B Type Bias Tire Bladder
Product Detail
B Type Bias Tire Bladder Specification 1/5:

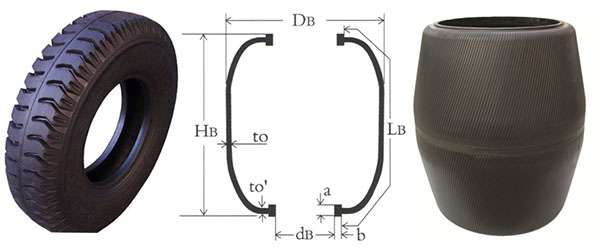

| Bladder Code | Foot I.D dB (mm) | Foot Height a (mm) | Foot Width b (mm) | Foot Gauge To＇ (mm) | Central Gauge To（mm） | Outside Diameter DB (mm) | Over-all Height HB (mm) | Effective Periphery LB(mm) |
| B600-13 | 246 | 20 | 12 | 8 | 6 | 390 | 320 | 366 |
| B600-14 | 246 | 20 | 12 | 8 | 6 | 390 | 354 | 400 |
| B6501 | 310 | 25 | 13 | 9 | 8 | 456 | 380 | 408 |
| B7001（B7003） | 310 | 23.5 | 11.5 | 8.5 | 7.5 | 445 | 402 | 430 |
| B7501 | 310 | 25 | 13 | 9 | 8 | 486 | 450 | 492 |
| B8251 | 360 | 27.5 | 14.5 | 13 | 9 | 535 | 530 | 590 |
| B8252 | 360 | 27 | 14 | 12 | 9 | 550 | 580 | 620 |
| B9001 | 360 | 27 | 14 | 13 | 9.5 | 618 | 552 | 637 |
| B9002 | 360 | 14 | 12 | 9.5 | 600 | 578 | 634 | |
| B9003 | 380 | 27 | 14 | 12 | 9.5 | 590 | 582 | 649 |
| B9004(注) | 380 | 27 | 14 | 10 | 7 | 571 | 560 | 605 |
| B10001 | 380 | 27 | 14(25) | 13 | 10.5 | 630 | 626 | 650 |
| B10002 | 360 | 27 | 14 | 13 | 10 | 630 | 626 | 650 |
| B11001 | 360 | 27 | 14 | 12 | 10 | 640 | 630 | 660 |
| B12001（B12002） | 380 | 27 | 13.5 | 13 | 11 | 660 | 670 | 790 |
| B20-1 | 384 | 27 | 13.5 | 14.5 | 12 | 571 | 458.5 | 542 |
| B20-3 | 384 | 27 | 25 | 14.5 | 11.5 | 650 | 700 | 630 |
| B13/1400-24 | 460 | 28 | 15.5 | 14 | 11 | 710 | 540 | 798 |
| BL16-575 | 309 | 19.5 | 12 | 11 | 10.5 | 470 | 616 | 580 |
| B10002-2JP | 380 | 26 | 14 | 10 | 8.5 | 630 | 616 | 680 |

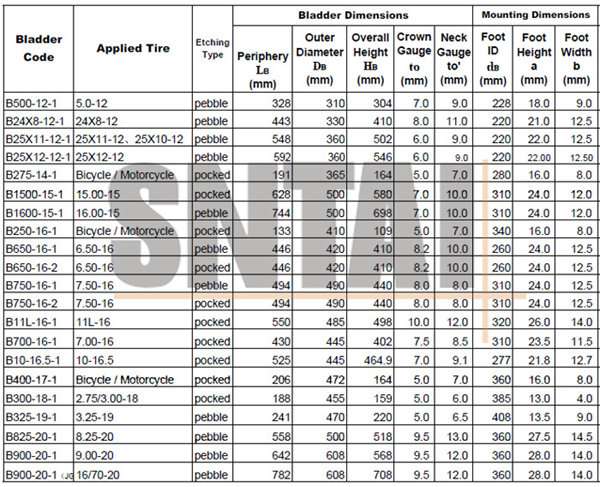

B Type Bias Tire Bladder Specification 2/5:

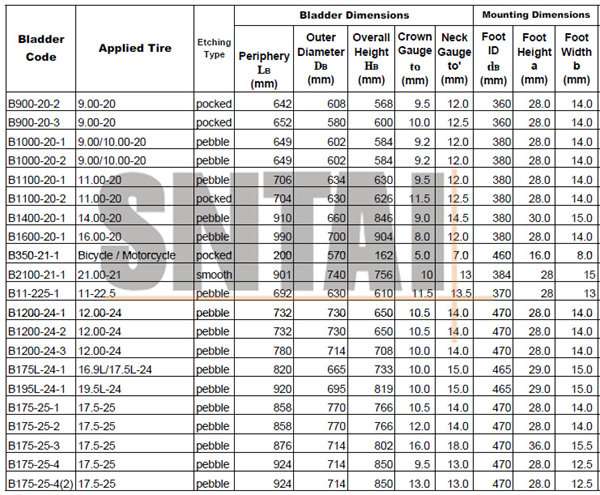

B Type Bias Tire Bladder Specification 3/5:

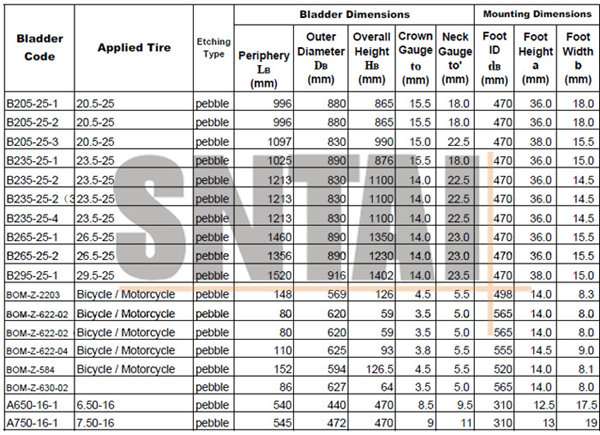

B Type Bias Tire Bladder Specification 4/5:

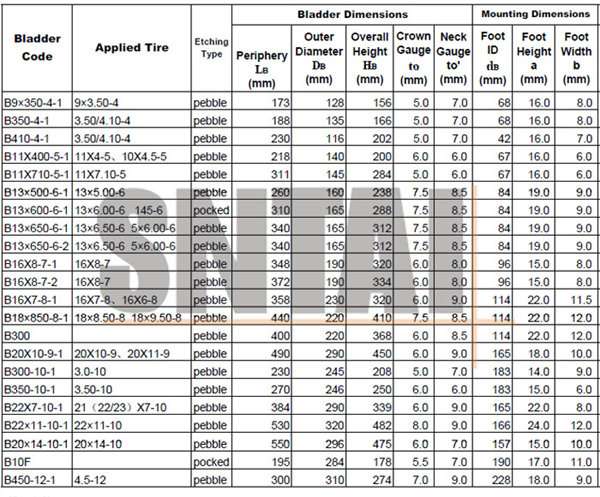

B Type Bias Tire Bladder Specification 5/5:
