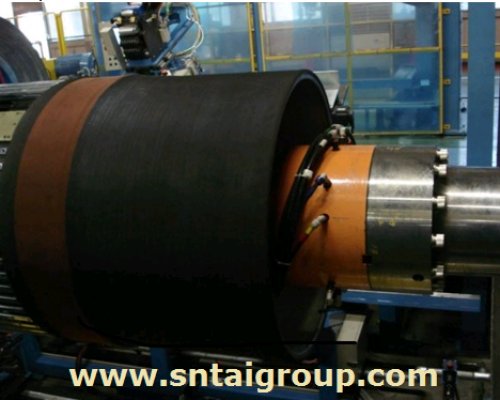

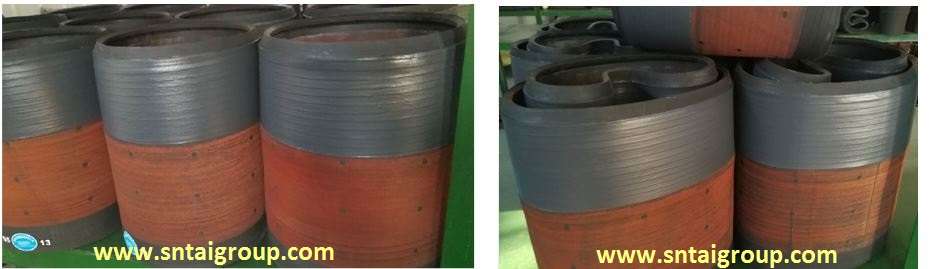

Tire building bladder for VMI TBM
Product Detail

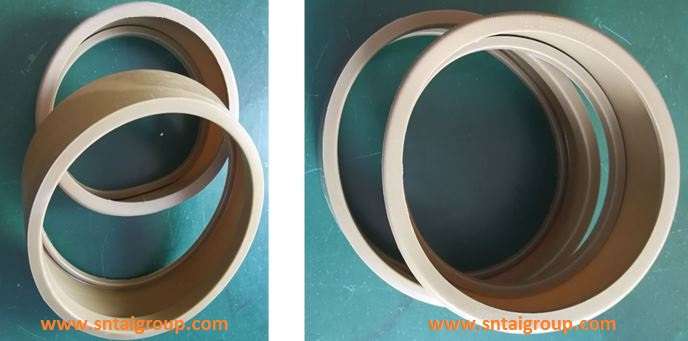

Bead Clamp Ring for VMI buidling machine .

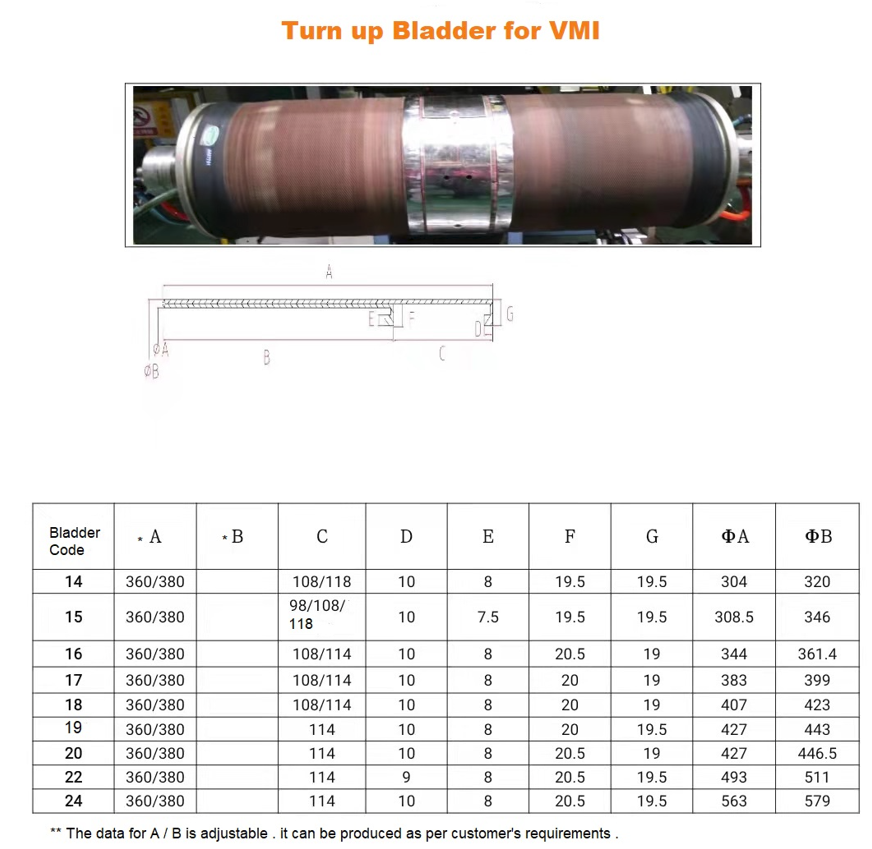

| Bladder Code | A | B | C | D | R | Drum |
| 13" | 281 | 296 | 102 | 20 | 10.7 | 309 |
| 14" | 308 | 318 | 102 | 20 | 10.7 | 337 |
| 15" | 325 | 334 | 102 | 20 | 10.7 | 362 |
| 16" | 348 | 363 | 102 | 20 | 10.7 | 387 |
| 17" | 368 | 388 | 102 | 20 | 10.7 | 417 |
| 18" | 386 | 409 | 102 | 20 | 10.7 | 442 |
| 19" | 406 | 428 | 107 | 25 | 12 | 467 |
| 20" | 428 | 450 | 107 | 25 | 12 | 492 |
| 21" | 453 | 475 | 107 | 25 | 12 | 517 |
| 22" | 474 | 496 | 107 | 25 | 12 | 544 |
| 24" | 520 | 542 | 107 | 235 | 12 | 594 |
