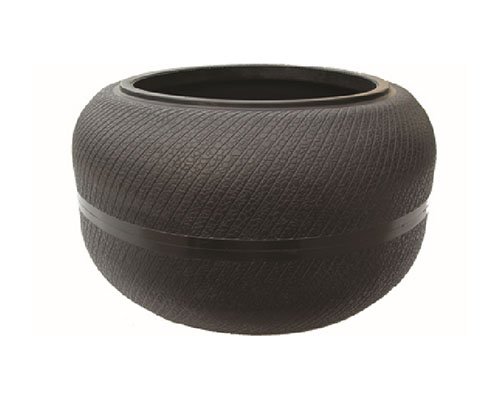

Tire Curing Bladders for PCR
Product Detail

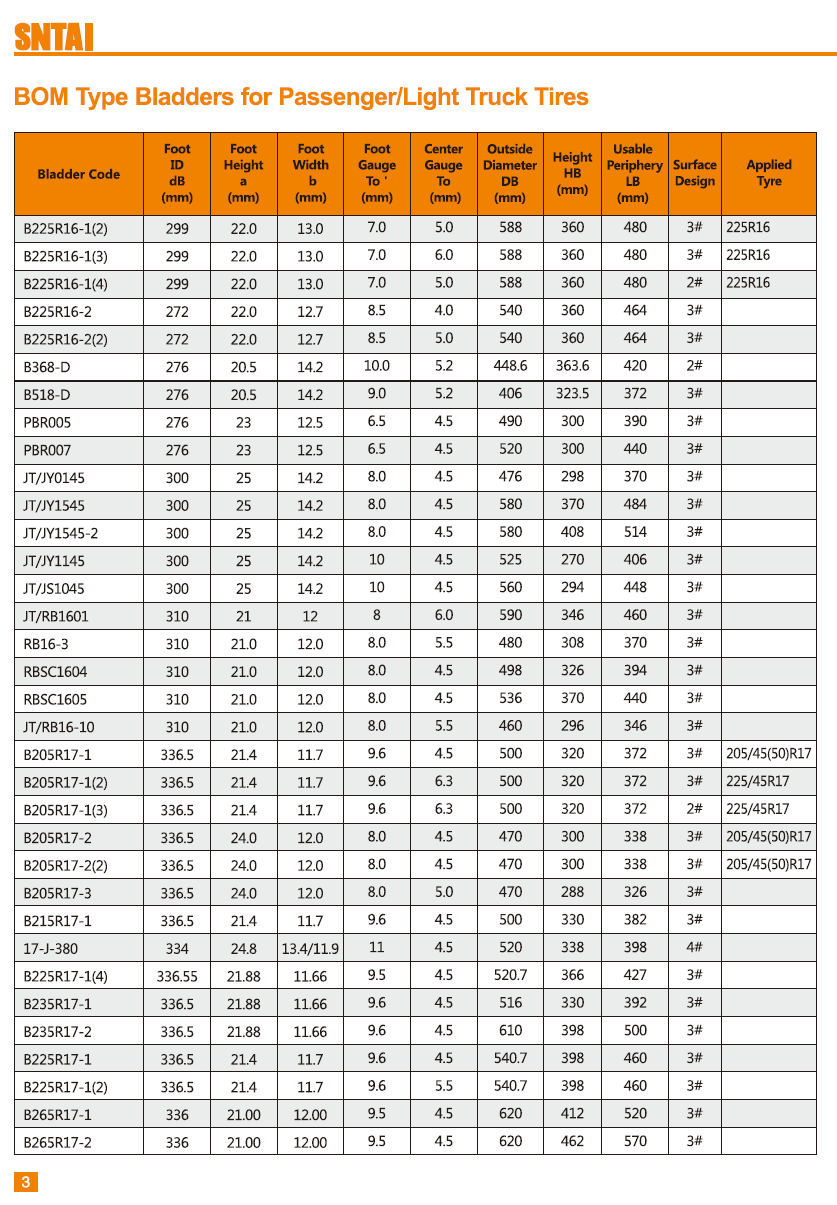

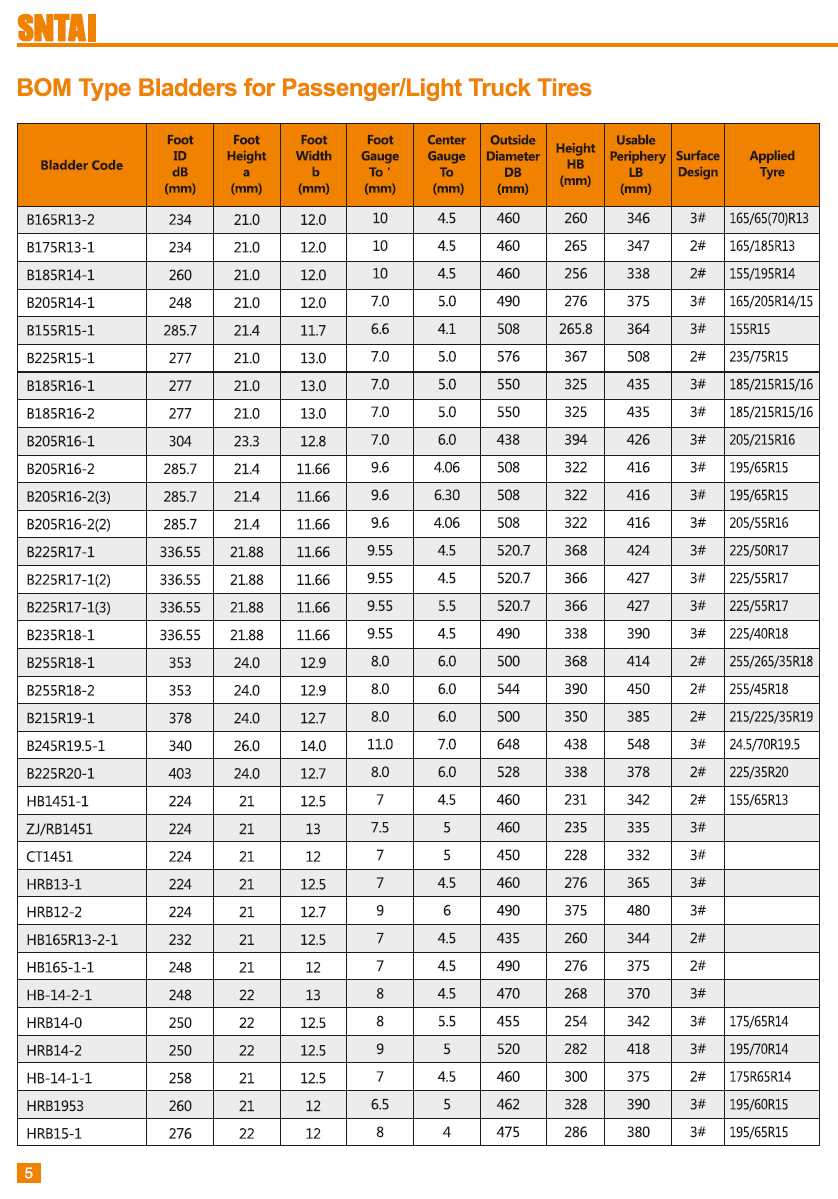

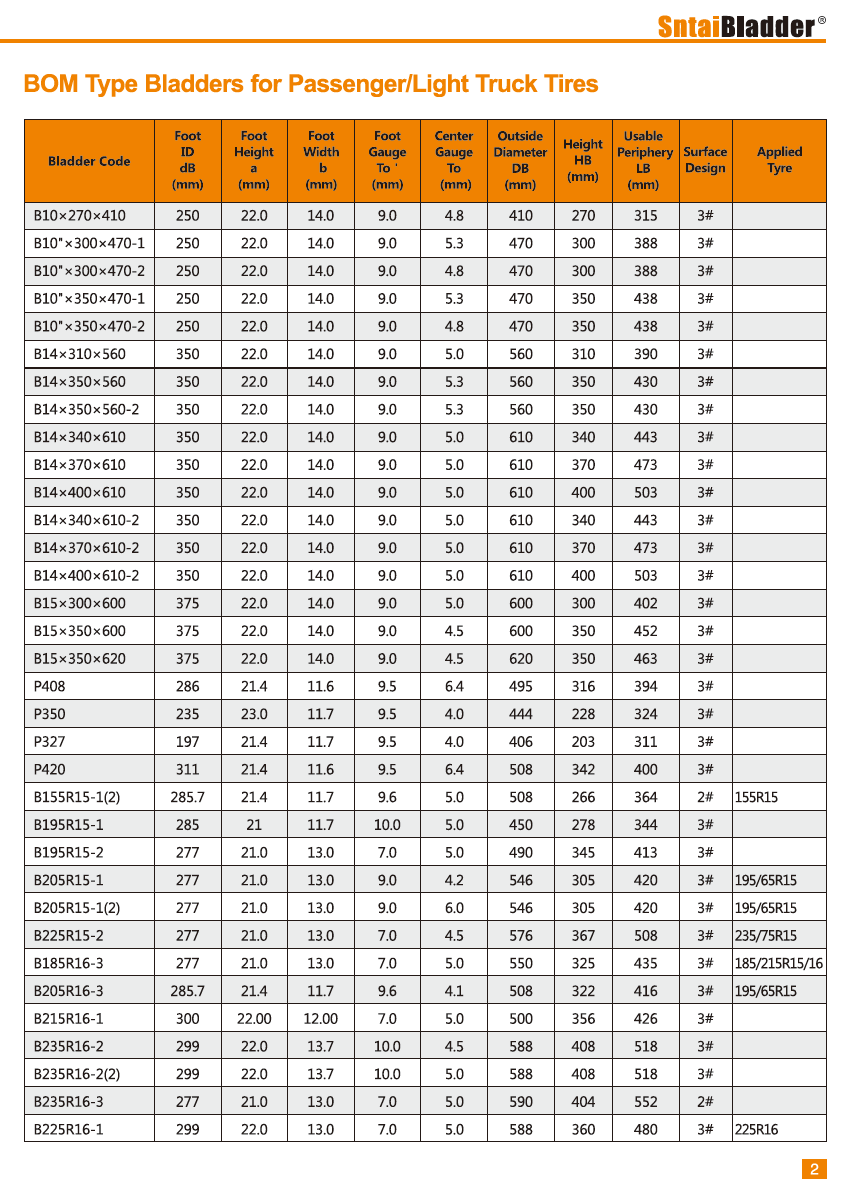

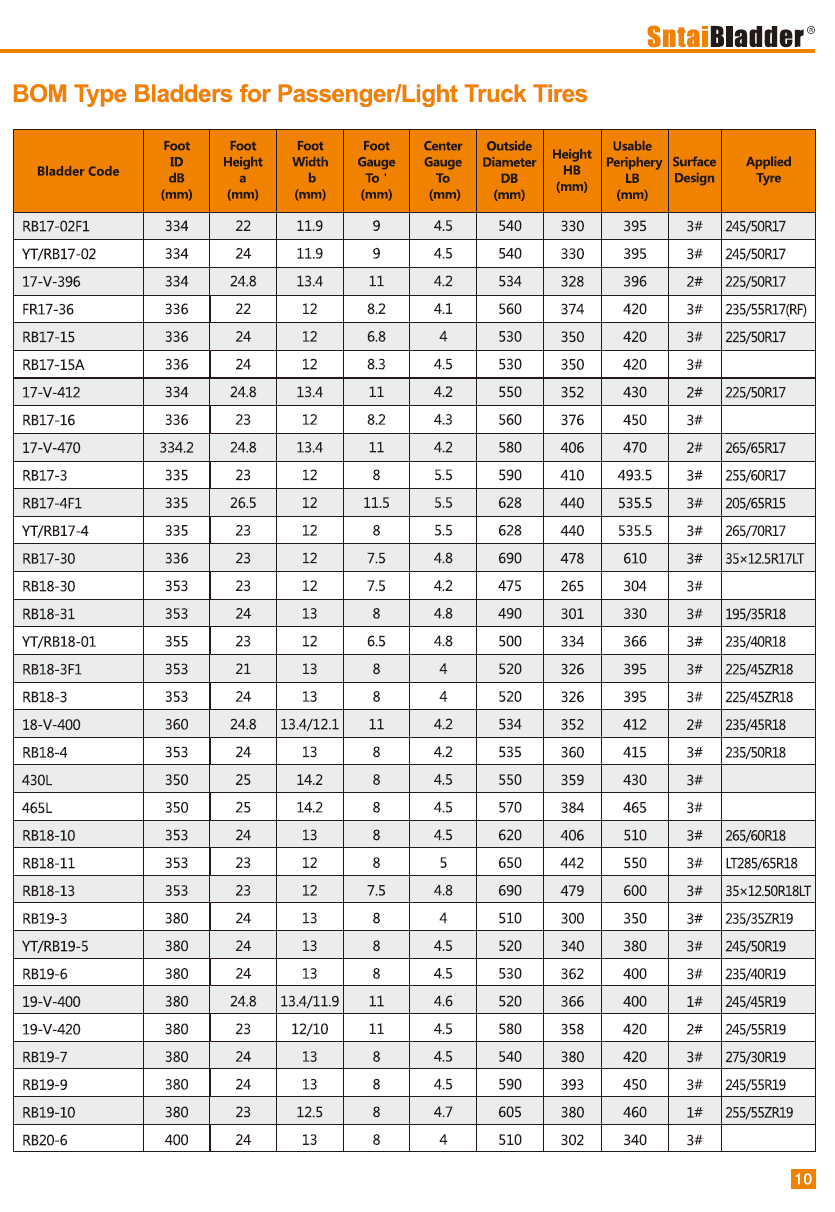

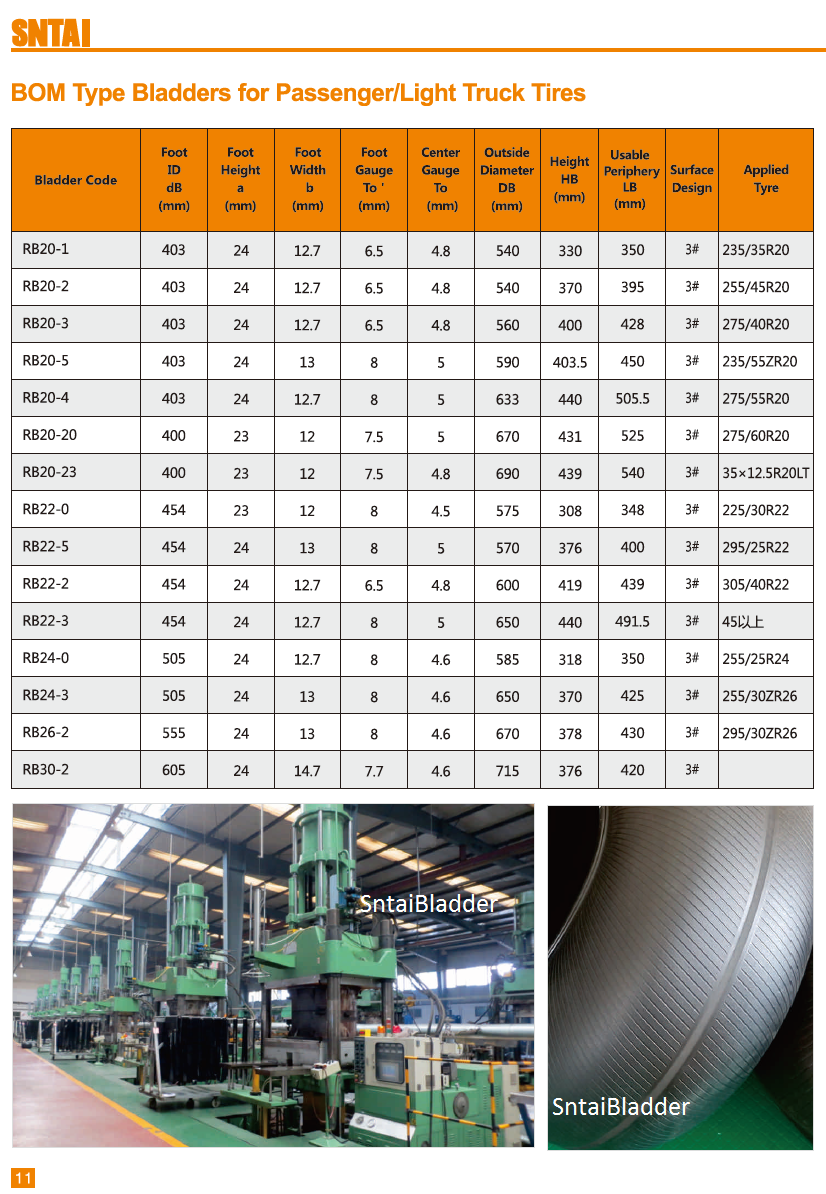

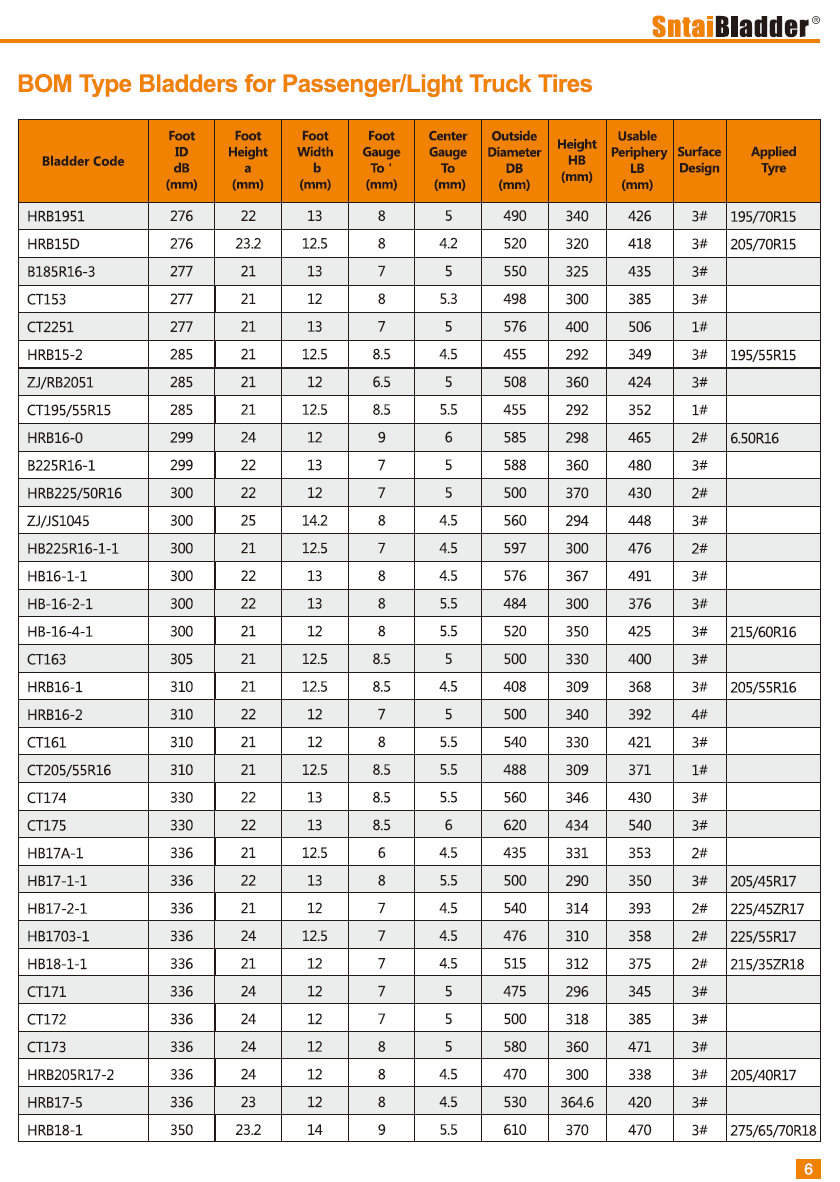

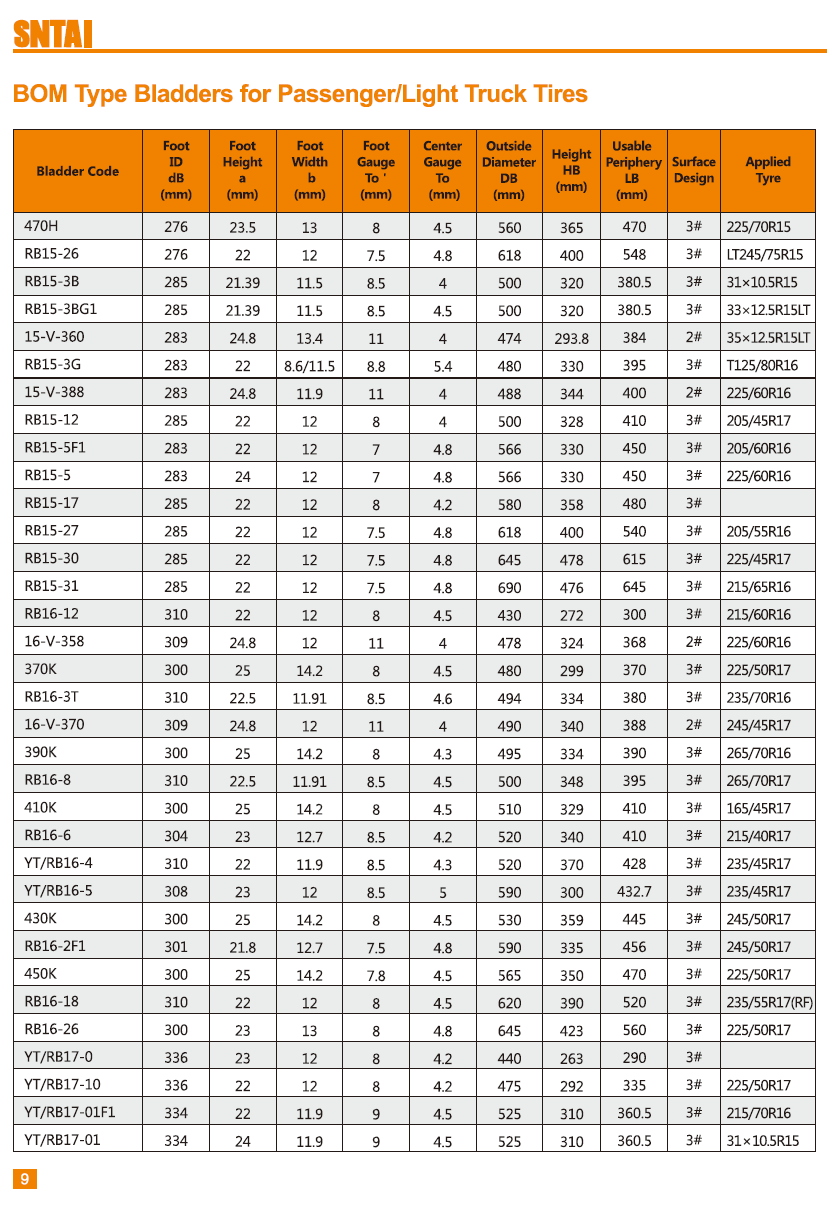

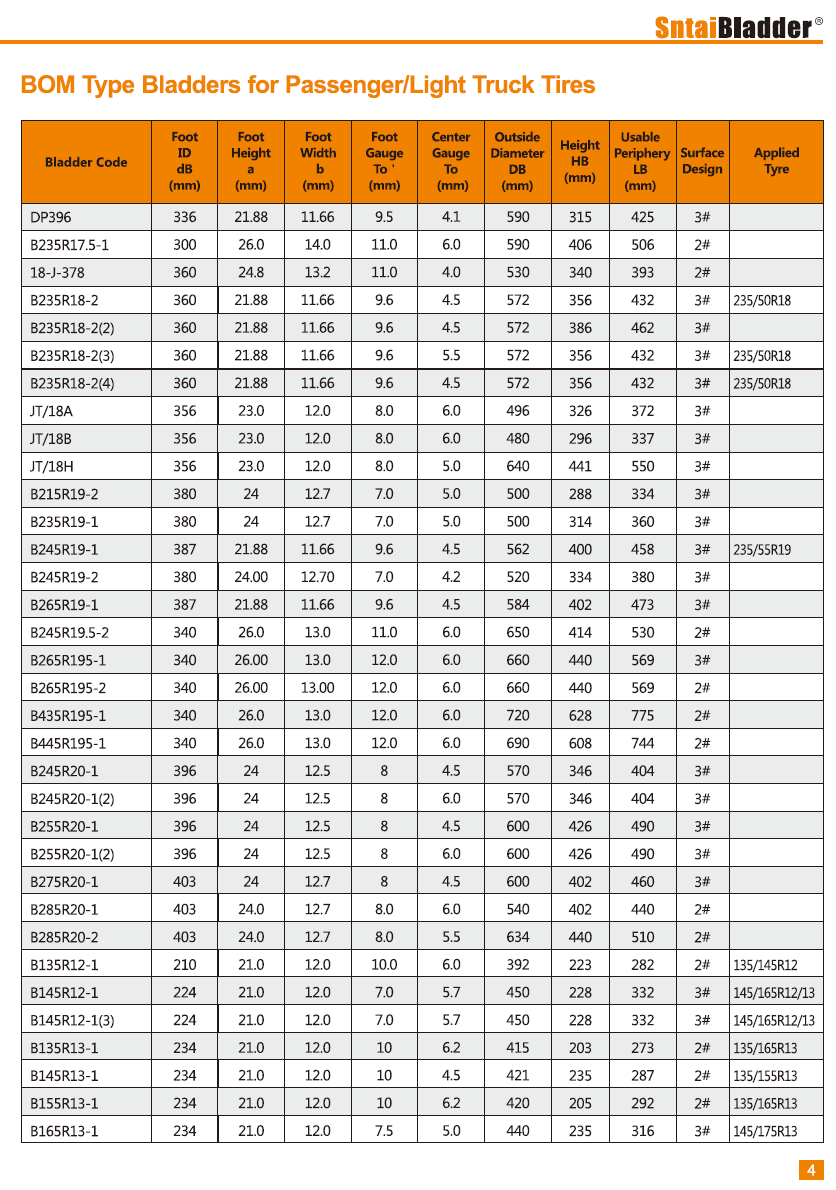

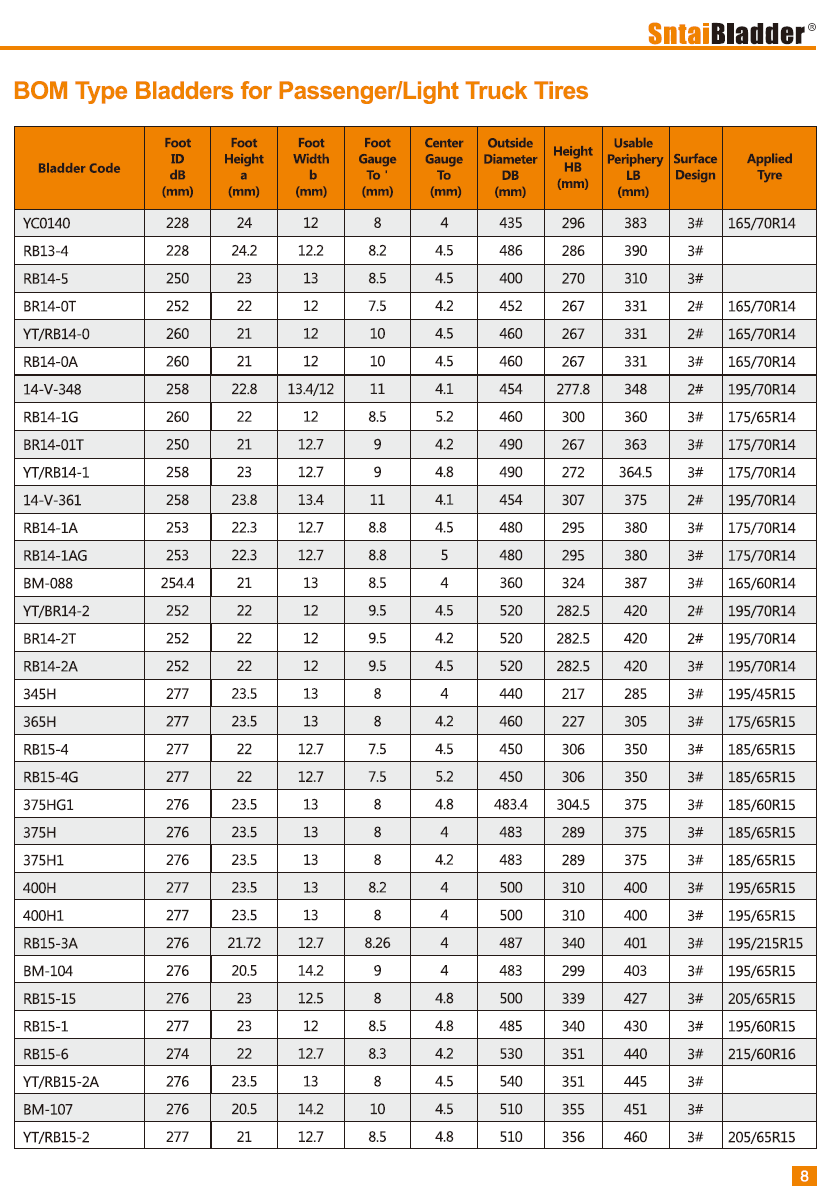

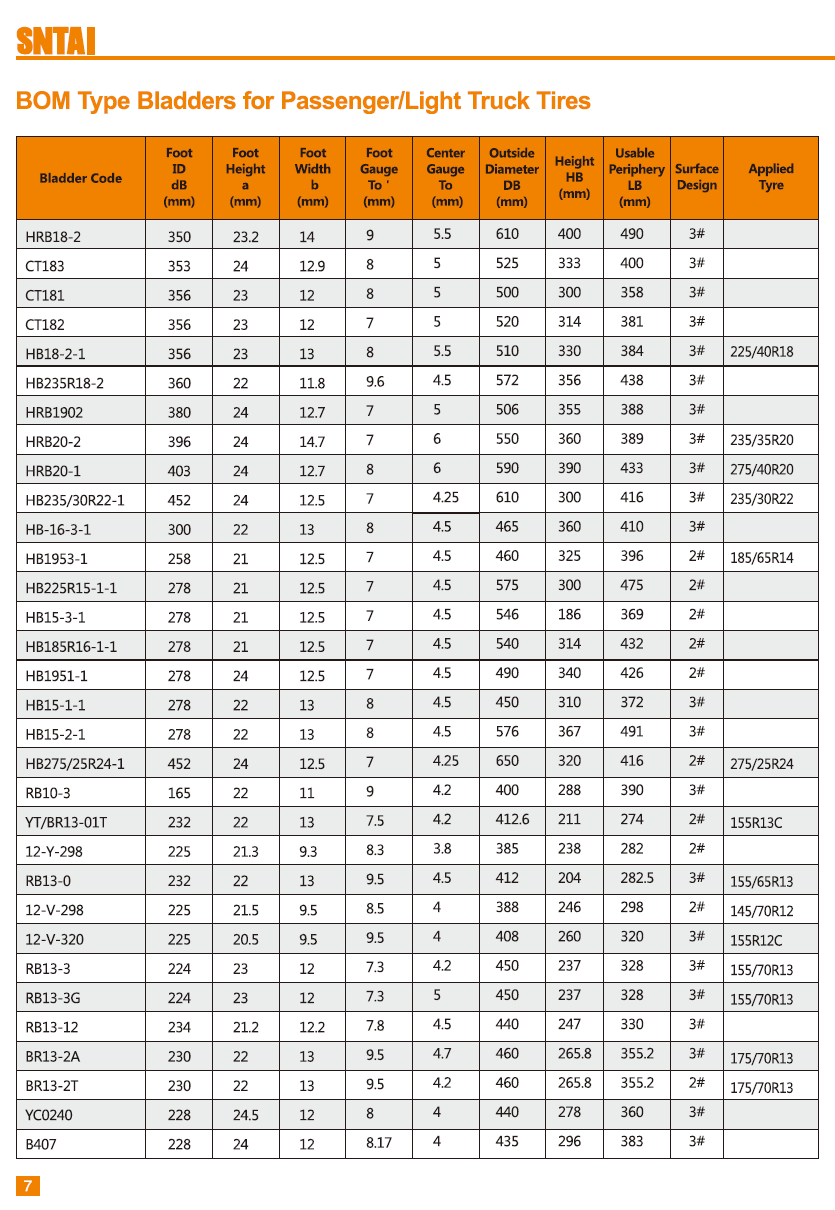

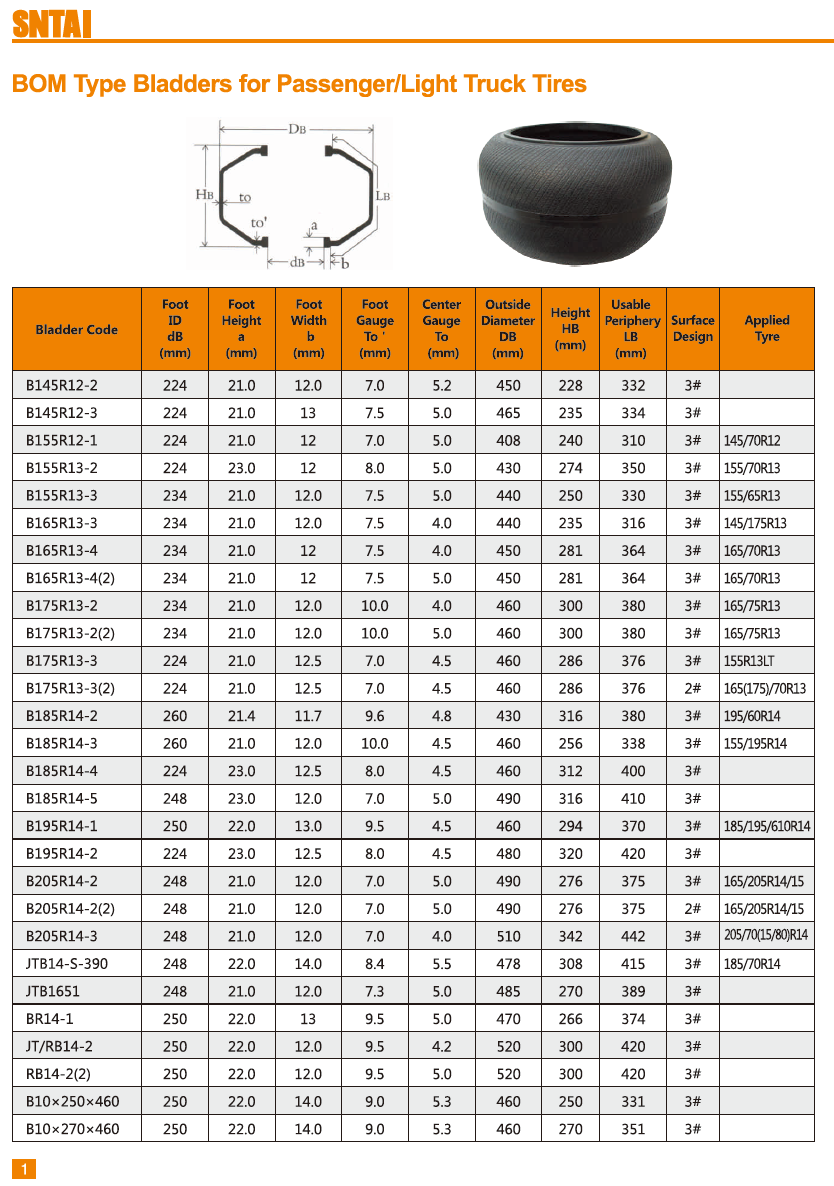

BOM type Curing bladder for PCR Tires:

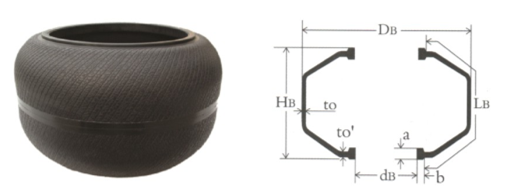

| Bladder Code | Foot I.D dB (mm) | Foot Height a (mm) | Foot Width b (mm) | Foot Gauge To＇ (mm) | Central Gauge To（mm） | Outside Diameter DB (mm) | Over-all Height HB (mm) | Effective Periphery LB(mm) | Applied Tyre Size |
| ST-HB1451-1 | 224 | 21 | 12.5 | 7 | 4.5 | 460 | 231 | 342 | 155/65R13 |
| ST-HB165R13-2-1 | 232 | 21 | 12.5 | 7 | 4.5 | 435 | 260 | 344 | |
| ST-HB165-1-1 | 248 | 21 | 12 | 7 | 4.5 | 490 | 276 | 375 | |
| ST-HB-14-2-1 | 248 | 22 | 13 | 8 | 4.5 | 470 | 268 | 370 | |
| ST-HB-14-1-1 | 258 | 21 | 12.5 | 7 | 4.5 | 460 | 300 | 375 | 175R65R14 , 185/60R14 |
| ST-HB225R16-1-1 | 300 | 21 | 12.5 | 7 | 4.5 | 597 | 300 | 476 | |
| ST-HB16-1-1 | 300 | 22 | 13 | 8 | 4.5 | 576 | 367 | 491 | |
| ST-HB-16-2-1 | 300 | 22 | 13 | 8 | 5.5 | 484 | 300 | 376 | |
| ST-HB-16-4-1 | 300 | 21 | 12 | 8 | 5.5 | 520 | 350 | 425 | 215/60R16 225/50R16 |
| ST-HB17A-1 | 336 | 21 | 12.5 | 6 | 4.5 | 435 | 331 | 353 | |
| ST-HB17-1-1 | 336 | 22 | 13 | 8 | 5.5 | 500 | 290 | 350 | 205/45R17 215/45ZR17 |
| ST-HB17-2-1 | 336 | 21 | 12 | 7 | 4.5 | 540 | 314 | 393 | 225/45ZR17 225/55R17 |
| ST-HB1703-1 | 336 | 24 | 12.5 | 7 | 4.5 | 476 | 310 | 358 | 205/40R17 225/45R17 |
| ST-HB18-1-1 | 336 | 21 | 12 | 7 | 4.5 | 515 | 312 | 375 | 215/35ZR18 225/40ZR18 |
| ST-HB18-2-1 | 356 | 23 | 13 | 8 | 5.5 | 510 | 330 | 384 | 225/40R18 235/40R18 |
| ST-HB235/30R22-1 | 452 | 24 | 12.5 | 7 | 4.25 | 610 | 300 | 416 | 235/30R22 |
| ST-HB-16-3-1 | 300 | 22 | 13 | 8 | 4.5 | 465 | 360 | 410 | |
| ST-RB1952 | 185 | 21 | 14.5 | 7 | 6 | 360 | 276 | 324 | 195/55R10 |
| ST-T12/250T | 220 | 23 | 12.5 | 9 | 5 | 370 | 210 | 234 | |
| MSA13-Y-348 | 223 | 24 | 14 | 8 | 4.2 | 435 | 240 | 348 | 165/65R13 |
| RB12-1 | 224 | 21 | 12.7 | 9 | 6 | 490 | 330 | 435 | 26×9R12 |
| RB12-2 | 224 | 21 | 12.7 | 9 | 6.5 | 490 | 375 | 480 | 26×11R12/26×10R14 |
| RB1451 | 224 | 21 | 13 | 7.5 | 5 | 460 | 235 | 335 | 145-165/R12-13 |
| RB1453 | 224 | 21 | 13 | 7.5 | 5 | 430 | 254 | 335 | 155/65R13 155/70R13 |
| RB1454 | 224 | 21 | 13 | 7.5 | 5 | 430 | 279 | 360 | 165/60R14 165/65R13 |
| RB1201 | 224 | 22 | 12 | 8 | 4.5 | 415 | 228 | 310 | |
| CDB12/13-3 | 224 | 21 | 12.5 | 7 | 4.5 | 460 | 276 | 356 | 165/65R14 |
| 12-S-282 | 225 | 20.5 | 9.5 | 9.5 | 4 | 370 | 240 | 282 | |
| 12-S-312 | 225 | 20.5 | 9.5 | 9.5 | 4 | 396 | 264 | 312 | 145/70R12 |
| MSA13-S-305 | 226 | 22 | 14 | 9 | 6 | 425 | 246 | 325 | 145R12C 155/65R13 155/70R12 |
| MSA13-S-345 | 226 | 22 | 14 | 8 | 4.5 | 460 | 270 | 365 | 155/80R13 175/70R13 |
| MSA13-S-370 | 226 | 22 | 14 | 9 | 6 | 460 | 295 | 390 | 165/70R14LT 89/87R 6PR |
| JY0242 | 228 | 24 | 12 | 8 | 4.2 | 390 | 286 | 352 | 165/70R13T 155/80R13T |
| JS0440 | 228 | 24 | 12 | 8 | 4 | 484 | 297 | 424 | 195/60R14 195/65R14 |
| JS0440-2 | 228 | 24 | 12 | 8 | 4 | 484 | 297 | 424 | 195/60R14 195/65R14 |
| ST-HB1953-1 | 258 | 21 | 12.5 | 7 | 4.5 | 460 | 325 | 396 | 185/65R14 195/65R14 |
| ST-HB225R15-1-1 | 278 | 21 | 12.5 | 7 | 4.5 | 575 | 300 | 475 | |
| ST-HB15-3-1 | 278 | 21 | 12.5 | 7 | 4.5 | 546 | 186 | 369 | |
| ST-HB185R16-1-1 | 278 | 21 | 12.5 | 7 | 4.5 | 540 | 314 | 432 | |
| ST-HB1951-1 | 278 | 24 | 12.5 | 7 | 4.5 | 490 | 340 | 426 | |
| ST-HB15-1-1 | 278 | 22 | 13 | 8 | 4.5 | 450 | 310 | 372 | |
| ST-HB15-2-1 | 278 | 22 | 13 | 8 | 4.5 | 576 | 367 | 491 | |
| JS0340 | 228 | 24 | 12 | 8 | 4 | 450 | 284.6 | 382 | 185/60R14 185/70R13 |
| JS0340/2 | 228 | 24 | 12 | 8 | 4 | 450 | 284.6 | 382 | 185/60R14 185/70R13 |
| JS0140 | 228 | 24 | 12 | 8 | 4 | 425 | 249 | 336 | 145/70R13 145/80R13 155/70R13 155/80R13 |
| RB13-01 | 232 | 22 | 13.5 | 6.2 | 4.5 | 412.6 | 211 | 281 | 145/60R13 |
| RB13-01T | 232 | 22 | 13.5 | 10 | 6 | 412.6 | 211 | 281 | 145/60R13 |
| RB13-2 | 232 | 22 | 13 | 10 | 6 | 460 | 265.8 | 353 | 155/80R13 165/65R13 165/70R13 175/60R13 175/70R13 |
| RB13-2B | 232 | 22 | 13 | 6.5 | 4 | 460 | 265.8 | 353 | 165/80R13 175/70R13 |
| RB13-20 | 234 | 21 | 12 | 7.5 | 5 | 440 | 235 | 330 | 145/70R13 155R13C 155/65R13 155/70R13 |
| 13-S-288 | 234 | 22.8 | 13.4/11.9 | 11 | 4 | 378 | 245 | 288 | |
| 13-S-317 | 234 | 22.8 | 13.4/11.9 | 11 | 4 | 405 | 263 | 315 | 145/70R12 69T |
| 13-S-342 | 234 | 22.8 | 13.4/11.9 | 11 | 4 | 422 | 285 | 342 | |
| BL13A332RA | 235 | 21 | 12 | 10 | 4.5 | 444 | 243 | 330 | 155/70R13 155/80R13 175/60R13 |
| 14EP354/4 | 247 | 22 | 12.7 | 8 | 4.5 | 490 | 265 | 370 | |
| RB1651（RB14-7） | 248 | 21 | 12.5 | 7 | 5 | 490 | 275 | 370 | 185、175/195/65R13 185/195/60R14 |
| RB1651B | 248 | 21 | 12.5 | 7 | 4.5 | 490 | 275 | 370 | 185、175/195/65R13 185/195/60R14 |
| RB14-0 | 250 | 22 | 13 | 9.5 | 6 | 455 | 254 | 345 | 175/65R14 |
| RB14-0B | 250 | 22 | 13 | 8.5 | 4.5 | 455 | 254 | 345 | 165/70R14C 175/65R14C |
| RB14-1 | 250 | 22 | 13 | 9.5 | 6 | 470 | 267.5 | 370 | 185/60R14 82H(T) |
| RB14-1B | 250 | 22 | 12 | 9.5 | 4.5 | 470 | 267.5 | 370 | 185/60R14 82H(T) |
| RB14-2 | 250 | 22 | 12 | 9.5 | 6 | 520 | 282.5 | 420 | 185/195/205/R14C 205/75R14C |
| RB14-03 | 250 | 22 | 13 | 9.5 | 6 | 545 | 323 | 467 | |
| RB1402 | 250 | 22.5 | 12 | 7.5 | 5 | 480 | 310 | 385 | 175/70R14 175/80R14 |
| MSA14-S-350 | 250 | 22 | 14 | 9 | 6 | 460 | 286 | 370 | 175R14LT 185/55R14 185/70R14 195/60R14 |
| MSA14-S-370 | 250 | 22 | 14 | 9 | 6 | 480 | 296 | 390 | 175/65R15 84T |
| MSA14-S-390 | 250 | 22 | 14 | 9 | 6 | 480 | 317 | 410 | 165/70R14 81T |
| MSA14-S-450 | 250 | 22 | 14 | 9 | 6 | 550 | 345 | 470 | |
| MSA14-S-450/2 | 250 | 22 | 14 | 9 | 4.5 | 550 | 345 | 470 | |
| RB1410 | 250 | 22.5 | 12 | 9.5 | 4.5 | 446 | 247 | 345 | 165/60R14 |
| RB14-0-2B | 250 | 22 | 12 | 9.5 | 4.5 | 470 | 260 | 360 | 165/70R14C 175/65R14C |
| 14-S-392 | 250 | 22 | 14 | 9 | 4.5 | 485 | 298 | 392 | |
| 14DXT467/4 | 251 | 21.2 | 12.5 | 8 | 4.2 | 485 | 365 | 467 | |
| MSA14-Y-304 | 254 | 24 | 14 | 8 | 4.2 | 420 | 236 | 304 | 155/55R14 155/65R14 |
| MSA14-S-310 | 254 | 20.5 | 12 | 7 | 4.2 | 460 | 225 | 310 | |
| MSA14-S-330 | 254 | 20.5 | 12 | 7 | 4.2 | 460 | 225 | 330 | 165R14C 165/70R14C 165/55R14 165/60R14 |
| MSA15-S-330 | 254 | 20.5 | 12 | 7 | 4.32 | 470 | 225 | 330 | 175/50R16 |
| MSA15-S-350 | 254 | 20.5 | 12 | 7 | 4.2 | 480 | 245 | 350 | |
| 14-S-344 | 258 | 22.8 | 13.4/11.9 | 11 | 4 | 430 | 304 | 344 | |
| 14-S-365 | 258 | 22.8 | 13.4/12.7 | 11 | 4 | 483.4 | 241.2 | 365 | |
| RBKP14-380 | 258 | 21 | 12 | 11 | 4 | 480 | 300 | 380 | 185/60R14 185/65R14 185/55R14 |
| T14/235T | 258 | 22.8 | 13.4/11.9 | 11 | 5 | 360 | 219 | 234 | |
| P353 | 260 | 21 | 12.5 | 9 | 4 | 470 | 241 | 333 | |
| RB1452 | 260 | 20 | 12 | 10 | 4.5 | 496 | 220 | 350 | 165/185R14 |
| RB1401 | 260 | 21 | 12 | 8 | 6 | 464 | 302 | 370 | 175/65R14 |
| RB1953 | 260 | 21 | 12 | 6.5 | 5 | 462 | 328 | 390 | 195/60R14 |
| B270/290×400×540 | 270 | 18 | 10 | 6 | 4.8 | 540 | 400 | 498 | 215/55R17 |
| RBKP15-366 | 273 | 21.72 | 12.7 | 8.26 | 4.5 | 460 | 310 | 365 | 195/50R15 |
| RBKP15/16-1 | 273 | 21.7 | 12.7 | 8.26 | 4 | 530 | 320 | 420 | 215/55R16 205/65R16 205/60R16 205/70R15 215/60R15 |
| RBKP15/16-2 | 273 | 21.72 | 12.7 | 8.26 | 3.81 | 530 | 345 | 442 | 205/70R15 |
| RB1503/4 | 275 | 20/22 | 12 | 8 | 6 | 498 | 310 | 385 | |
| JY03 | 276 | 23 | 12.5 | 8 | 4 | 475 | 286 | 380 | 195/205/50R15 195/55R15/195/205/60R15/ |
| JY04 | 276 | 23 | 12.5 | 8 | 5 | 500 | 320 | 433 | 205/55R16 215/65R15 |
| JYBD0140 | 276 | 23 | 12.5 | 8 | 4 | 496 | 290 | 461 | 205/50R16 |
| JYBD0250 | 276 | 23 | 12.5 | 8 | 5 | 540 | 422 | 570 | 235/85R16 265/75R16 |
| JS0850 | 276 | 23 | 12.5 | 8 | 5 | 506 | 376 | 469 | 225/70R15 225/70R16 |
| JS0950 | 276 | 23 | 12.5 | 8 | 5 | 486 | 419 | 509 | 235/75R15 245/75R16 |
| RB15-2 | 276 | 21 | 12 | 9 | 525 | 405 | 485 | ||
| MSA15-S-355 | 276 | 22 | 14 | 9 | 6 | 550 | 262 | 375 | |
| MSA15-S-400 | 276 | 22 | 14 | 9 | 6 | 550 | 307 | 420 | 235/75R15 |
| MSA15-S-440 | 276 | 22 | 14 | 9 | 6 | 550 | 347 | 460 | 195/75R16C 107/105R |
| MSA15-Y-300/4.2 | 276 | 24 | 14 | 8 | 4.2 | 410 | 250 | 300 | 165/50R15 |
| MSA15-Y-320/4.2 | 276 | 24 | 14 | 8 | 4.2 | 450 | 250 | 320 | 175/55R15 195/45R15 |
| MSA15-Y-610 | 276 | 24 | 14 | 8 | 5.5 | 670 | 420 | 610 | 33*12.50R15LT 35*12.50R15LT |
| RB1951 | 276 | 26 | 12.7 | 6 | 5 | 490 | 340 | 430 | 195/65R15 |
| RB1951-2 | 276 | 26 | 12.7 | 6 | 5 | 510 | 340 | 430 | 195/65R15 |
| 15DXT415/4 | 276 | 23.2 | 12.5 | 8 | 4.2 | 520 | 320 | 418 | 205/65R15 215/60R15 205/70R15 P215/75R15 |
| 15DXT500/4 | 276 | 23.2 | 12.5 | 8 | 4.2 | 560 | 400 | 500 | 205/65R15 235/75R15LT 31*10.5215LT P235/75R15 |
| RBJY15-375 | 276 | 24 | 13 | 8 | 4 | 490 | 300 | 375 | |
| JY0750 | 276 | 23 | 12.5 | 8 | 5 | 510 | 315 | 425 | 185/75R16C 195/60R15 195/65R16 215/70R15 205/55R16 |
| JY0640 | 276 | 23 | 12.5 | 8 | 4 | 485 | 320 | 390 | |
| SR15-01 | 276 | 23.45 | 12.8 | 7.7 | 4 | 503 | 288 | 391 | |
| JR1501 | 276 | 24 | 12 | 7.5 | 4.5 | 472 | 212 | 295 | |
| JR1502 | 276 | 24 | 12 | 7.5 | 4.5 | 438 | 204 | 265 | |
| JR1503 | 276 | 24 | 12 | 7.5 | 5 | 490 | 326 | 395 | 185/65R15 195/55R15 195/55R16 |
| RB15-3(1751) | 277 | 21 | 13 | 8 | 5 | 546 | 185 | 372 | 185/60R15 |
| T15/275T | 283 | 24.8 | 13.4/11.9 | 11 | 4.5 | 385 | 267 | 275 | |
| T15/310T | 283 | 24.8 | 13.4/11.9 | 11 | 4.5 | 385 | 302 | 310 | |
| 15-S-362 | 283 | 24.8 | 13.4/11.9 | 11 | 4 | 466 | 330 | 362 | 195/45R16 |
| 15-S-428 | 283 | 24.8 | 13.4/11.9 | 11 | 4 | 526 | 360 | 428 | 215/70R15 235/75R15 |
| RB1501 | 285 | 21 | 12 | 8 | 6 | 588 | 390 | 495 | 7.50/8.25R15 |
| RB1501/2 | 285 | 21 | 12 | 8 | 7.5 | 588 | 390 | 495 | |
| RB1502 | 285 | 21 | 12 | 9 | 7 | 680 | 430 | 600 | 9.00/10.00R15 |
| RB1503 | 285 | 21 | 12 | 8 | 6 | 498 | 310 | 380 | 195/65R15 |
| RB1503-B | 285 | 21 | 12 | 8 | 4.5 | 498 | 310 | 380 | 195/65R15 |
| RB1503B/2 | 285 | 21 | 12 | 8 | 4.5 | 498 | 310 | 380 | 195/65R15 |
| RB1503/3 | 285 | 19.5/22 | 12 | 8 | 6 | 498 | 310 | 380 | 195/55R15 205/55R15 |
| RB1504 | 285 | 21 | 12 | 8 | 6 | 522 | 340 | 422 | 215/65R15 |
| RB1504/2 | 285 | 21 | 12 | 8 | 4.5 | 522 | 340 | 422 | 215/65R15 |
| RB2051 | 285 | 21 | 12 | 6.5 | 5 | 508 | 360 | 424 | 205/65R15 215/60R15 195/70R15 205/60R15 |
| RB2051-3 | 285 | 21 | 12 | 6.5 | 4.5 | 508 | 360 | 421 | |
| RB15-538 | 285 | 21 | 12 | 8 | 5 | 622 | 400 | 538 | 31×10.5LR15 |
| B15/480/588 | 285 | 21 | 11.7 | 6 | 4.5 | 588 | 342 | 480 | GT235/75R15(大） 30/9.5R15.P235/75R15 |
| B15/438/588 | 285 | 21 | 11.7 | 6 | 4.5 | 588 | 300 | 438 | GT235/75R15(小） P225/75R15.7.00R15 |
| B15/372/460 | 285 | 21 | 11.7 | 6 | 4.5 | 460 | 300 | 372 | 185/55R15 185/60R15 195/55R15 195/50R15 195/60R15 |
| P357 | 286 | 21 | 12.5 | 9 | 4 | 521 | 254 | 368 | 155R15 |
| B12.5×385×562 | 290 | 22 | 12 | 8 | 4.5 | 570 | 375 | 489 | |
| B12.5×445×562 | 290 | 22 | 12 | 8 | 4.5 | 570 | 435 | 549 | |
| RB16-0-1 | 295 | 21 | 12.7 | 8 | 5 | 581 | 370 | 455 | ST235/80-16 ST235/85-16 |
| RB16-0 | 299 | 22 | 12.7 | 10 | 7.2 | 588 | 297 | 472 | 700R16 |
| RB16-0-2 | 299 | 22 | 12.7 | 10 | 6.5 | 610 | 320 | 490 | 700R16 |
| RB16-1 | 299 | 22 | 12 | 10 | 8 | 510 | 411 | 485 | |
| RB16-2 | 299 | 22 | 12.7 | 10 | 8 | 570 | 466 | 561 | |
| JYBE0145 | 300 | 25 | 14.2 | 8 | 4.5 | 484 | 307 | 364 | 205/45ZR16 87WXL |
| JS1045 | 300 | 25 | 14.2 | 8 | 4.5 | 560 | 307 | 450 | 205.215.225/70R16 225/75R16 |
| JY1145 | 300 | 25 | 14.2 | 7 | 4.5 | 525 | 300 | 407 | 225/55R16 215/60R16 195/75R16C |
| JY1145/2 | 300 | 25 | 14.2 | 8 | 4.5 | 525 | 300 | 407 | 225/55R16 215/60R16 195/75R16C |
| JS1345 | 300 | 25 | 14.2 | 8 | 4.5 | 606 | 343 | 505 | 245.255.265.275.P265/70R16 245.265/75R16 |
| JS1445 | 300 | 25 | 14.2 | 7 | 4.5 | 626 | 367 | 567 | 285.315/75R16LT 305/70R16LT |
| JS1545 | 300 | 25 | 14.2 | 8 | 4.5 | 580 | 330 | 481 | 235/70R16 P245/70R16 P235/70R16 |
| JY1045-A | 300 | 25 | 14.2 | 8 | 4.5 | 600 | 330 | 480 | |
| JY1045-B | 300 | 25 | 14.2 | 8 | 4.5 | 512 | 320 | 414 | |
| 225/50R16 | 300 | 22 | 12 | 7 | 5 | 500 | 360 | 430 | R225/50R16 |
| RB1610 | 300 | 23 | 12.7 | 7.5 | 5.5 | 475 | 295 | 352 | 195/45R16 205/45R16 |
| JY0145 | 300 | 25 | 14.2 | 8 | 4.5 | 490 | 290 | 370 | 205/45R17 205/40R17 |
| 16DXT430/5 | 301 | 23.2 | 12.5 | 8 | 5 | 585 | 320 | 430 | 6.50R16 |
| 16DXT490/5 | 301 | 23.2 | 12.5 | 8 | 5 | 585 | 380 | 490 | LT235/70R16 |
| MSA16-S-460 | 301 | 23.2 | 12 | 8 | 4.5 | 560 | 330 | 460 | 215/60R17 |
| SR16-02 | 301 | 23.45 | 12.8 | 7.7 | 4 | 535 | 295 | 406 | |
| SR16-05 | 301 | 23.45 | 12.8 | 7.7 | 4 | 615 | 340 | 511 | |
| RB16-380 | 308 | 23 | 13 | 7.5 | 4.8 | 502 | 302 | 380 | 195/65R16 195/60R16 |
| T16/245T | 309 | 24.8 | 13.4/11.9 | 11 | 4.5 | 410 | 236.4 | 245 | |
| T16/300T | 309 | 24.8 | 13.4/11.9 | 11 | 4.5 | 410 | 291.4 | 300 | |
| T16/330T | 309 | 24.8 | 13.4/11.9 | 11 | 4.5 | 410 | 321.4 | 330 | |
| 16-S-376 | 309 | 24.8 | 13.4/11.9 | 11 | 4 | 484 | 340 | 376 | 195/60R16 205/55R16 |
| 16-S-395 | 309 | 24.8 | 13.4/11.9 | 11 | 4 | 483 | 331 | 395 | |
| 16-S-420 | 309 | 24.8 | 13.4/11.9 | 11 | 4 | 520 | 390 | 420 | 215/70R16 235/60R16 225/60R16 235/70R16 |
| 16-S-472 | 309 | 24.8 | 13.4/11.10 | 11 | 4 | 574 | 390 | 472 | 235/70R16 245/75R16 275/70R16 245/70R16 265/70R16 |
| 16-S-381 | 309 | 24.8 | 13.4/11.9 | 11 | 4 | 516 | 320 | 381 | 195/60R16 |
| RB1601 | 310 | 24 | 12 | 8 | 5 | 590 | 360 | 460 | 7.00R16C |
| RB1601/2 | 310 | 23 | 12 | 8 | 6 | 590 | 360 | 460 | 235/65R16 235/70R16 |
| RB1602 | 310 | 21 | 12 | 8 | 7 | 610 | 400 | 516 | LT265/75R16 |
| RB1602/2 | 310 | 21 | 12 | 8 | 8 | 610 | 400 | 516 | 255/70R16 |
| RB1602/3 | 310 | 21 | 12 | 8 | 8 | 610 | 400 | 516 | 255/70R16 265/70R16 |
| RB1602B | 310 | 21 | 12 | 8 | 5 | 610 | 400 | 516 | LT235/85R16 245/70R16 245/75R16 245/80R16 255/65R16 265/70R16 275/70R16 |
| RB1603 | 310 | 21 | 12 | 8 | 6 | 660 | 450 | 580 | LT225/85R16 |
| RB1604(注) | 310 | 21 | 12 | 8 | 4.5 | 498 | 338 | 394 | 185/75R16C 195/60R16 195/65R16C 205/55R16 |
| RB1604（1） | 310 | 21 | 12 | 8 | 5 | 510 | 345 | 405 | 205/55R16 |
| RB1604/2 | 310 | 21 | 12 | 8 | 6 | 498 | 338 | 394 | 195/55R16 |
| RB1604（模压） | 310 | 21 | 12 | 8 | 4 | 498 | 338 | 394 | 205/55R16 205/50R16 |
| RB1605 | 310 | 22 | 12 | 8 | 6 | 536 | 370 | 441 | 215/60R16/225/60R16 |
| RB1605B | 310 | 22 | 12 | 8 | 4.5 | 536 | 370 | 441 | 215/60R16/225/60R16 |
| MSA16-Y-292/4.2 | 310 | 24 | 12 | 7 | 4.2 | 430 | 280 | 292 | 165/40 165/45R16 |
| MSA16-Y-317/4.2 | 310 | 24 | 12 | 7 | 4.2 | 460 | 264 | 317 | 165/50R16 |
| TM16-1 | 310 | 21 | 12 | 8 | 4 | 550 | 350 | 427 | 205/55R16 |
| KD16-385 | 310 | 21 | 12 | 8 | 4.5 | 525 | 300 | 385 | 205/55R16 |
| SR17-03 | 327 | 23.45 | 12.8 | 7.7 | 4.5 | 525 | 355 | 420 | |
| SR17-04 | 327 | 23.45 | 12.8 | 7.7 | 4.5 | 565 | 334 | 435 | |
| SR17-05 | 327 | 23.45 | 12.8 | 7.7 | 4.5 | 590 | 377 | 485 | |
| RBKP17-392 | 330 | 21.6 | 12.7 | 8 | 4.2 | 524 | 330 | 392 | 225/45R17 225/40R18 215/50R17 215/55R17 |
| ZP-382 | 330 | 22 | 12 | 8 | 4.2 | 490 | 338 | 382 | 205/45ZR17 |
| DG17-430 | 330 | 22 | 12 | 8 | 4.5 | 525 | 370 | 430 | 235/50R17 255/40R17 |
| 17A | 331 | 23 | 12.5 | 8 | 6 | 500 | 320 | 364 | 215/35R18 |
| 17-S-394 | 334 | 24.8 | 13.4/11.9 | 11 | 4 | 528 | 345 | 394 | 245/45R17 215/60R17 225/60R17 |
| 17-S-420 | 334 | 24.8 | 13.4/11.9 | 11 | 4 | 546 | 360 | 420 | 225/55R17 225/60R17 225/50R17 235/55R17 |
| 17-S-470 | 334 | 24.8 | 11.9/13.4 | 11 | 4.2 | 600 | 400 | 481 | |
| RBKP17/18-1 | 335 | 22 | 12.5 | 9 | 4 | 546 | 366 | 447 | 235/55R17 |
| RBKP17/18-2 | 335 | 22 | 12.5 | 9 | 4 | 546 | 366 | 447 | 235/55R17 |
| RB1700 | 335 | 24 | 12 | 8 | 5 | 510 | 330 | 380 | 205/50R17 215/45R17 215/50R17 215/55R17 |
| MSA17-S-240 | 336 | 21 | 12 | 6 | 3.2 | 440 | 220 | 250 | 165/40R17 |
| MSA17-S-282 | 336 | 21.5 | 12 | 8 | 4.5 | 495 | 220 | 282 | 205/40ZR17 205/45ZR17 215/40ZR17 |
| RB1701 | 336 | 21 | 12 | 8 | 6 | 628 | 445 | 538.5 | 265/70R17 |
| RB1702 | 336 | 21 | 12 | 8 | 6 | 590 | 400 | 481 | P245/65R17 |
| RB1702B | 336 | 21 | 12 | 8 | 4.5 | 590 | 400 | 481 | 235/65R17 245/65R17 |
| RB1702-3B | 336 | 22 | 12 | 8 | 6 | 590 | 400 | 481 | |
| RB1702GY | 336 | 21 | 12 | 8 | 5 | 590 | 400 | 481 | |
| RB1703 | 336 | 24 | 12 | 7 | 6 | 475 | 317 | 352 | 215/205/45/40R17 |
| RB1703B | 336 | 24 | 12 | 7 | 4.5 | 475 | 317 | 352 | 215/205/45/40R17 |
| RB1704 | 336 | 24 | 12 | 8 | 5.5 | 510 | 343 | 392 | 245/45.205/50R17 |
| RB1704B | 336 | 24 | 12 | 7 | 4.5 | 510 | 343 | 392 | 215/50R17 215/50ZR17 |
| RB1704B/2 | 336 | 24 | 12 | 7 | 4.5 | 510 | 343 | 392 | 205/50R16 |
| RB1705 | 336 | 24 | 12 | 8 | 6 | 584 | 410 | 500 | 245/255/265/275 285/65R17 |
| RB1705/2 | 336 | 24 | 12 | 8 | 5 | 584 | 410 | 500 | |
| RB1705GY | 336 | 24 | 12 | 8 | 6 | 584 | 410 | 500 | |
| RB1706 | 336 | 24 | 12 | 8 | 4.4 | 510 | 343 | 392 | 235/45R17 |
| RB1707 | 336 | 24 | 12 | 8 | 6 | 706 | 453 | 608 | 35×12.5R17,315/70R17 |
| RB1710 | 336 | 24 | 12 | 7 | 4.5 | 525 | 300 | 405 | 215/50R17 225/55R17 |
| JR1701 | 336 | 24 | 12 | 8 | 4.5 | 540 | 320 | 405 | |
| SEN17-01B | 336 | 24 | 12 | 7 | 4.2 | 445 | 230 | 263 | 165/35R17 |
| SEN17-02B | 336 | 24 | 12 | 7 | 4.2 | 460 | 240 | 285 | 165/45R17 |
| JS1945A | 350 | 25 | 14.2 | 8 | 5 | 590 | 370 | 480 | 235/55R19、255/50R19、 285/45R19、275/45R19、 255/45R20、275/40、45R20 |
| JS1945B | 350 | 25 | 14.2 | 8 | 5 | 630 | 360 | 505 | 255/55R19、255/60R19、 255/50R20、255/55R20 |
| JS1645 | 350 | 25 | 14.2 | 8 | 4.5 | 540 | 301 | 371 | |
| JS1750 | 350 | 25 | 14.2 | 8 | 5 | 665 | 331 | 521 | |
| JS2245 | 350 | 25 | 14.2 | 8 | 4.5 | 564 | 360 | 454 | 225/60R18 235/55R18 245/50R18 245/60R18 275/40R18 |
| JS2345 | 350 | 25 | 14.2 | 8 | 4.5 | 555 | 340 | 428 | 245/45R19 |
| JS1855 | 350 | 25 | 14.2 | 8 | 5.5 | 670 | 355 | 556 | LT275/70R18 125/122Q10PR |
| JS1950 | 350 | 25 | 14.2 | 8 | 5 | 625 | 320 | 477 | 255/55R19 265/50R19 275/55R19 285/45R19 |
| RB1905 | 350 | 22 | 14 | 7 | 4.2 | 530 | 340 | 423 | 275/30R19 |
| JS2045 | 350 | 25 | 14.2 | 8 | 4.5 | 550 | 320 | 405 | 225/35R20 |
| B14×360×565 | 350 | 22 | 14 | 9 | 4.5 | 565 | 358 | 454 | |
| B14×355×670 | 350 | 22 | 14 | 9 | 5.5 | 670 | 352 | 556 | 285/60R18 |
| B14×340×555 | 350 | 22 | 14 | 9 | 4.5 | 555 | 337 | 428 | 245/35R20 |
| SR18-01 | 353 | 23.45 | 12.8 | 7.7 | 5 | 530 | 290 | 365 | |
| SR18-02 | 353 | 23.45 | 12.8 | 7.7 | 5 | 525 | 339 | 395 | |
| SR18-03 | 353 | 23.45 | 12.8 | 7.7 | 5 | 565 | 346 | 425 | |
| SR18-04 | 353 | 23.45 | 12.8 | 7.7 | 5 | 590 | 374 | 465 | |
| 18A | 356 | 23 | 12 | 8 | 6 | 500 | 336 | 366 | 225/235/40ZR18 215/55R18 |
| 18B | 356 | 23 | 12 | 7 | 6 | 474 | 288 | 329 | 215/35R18 |
| 18C-1 | 356 | 23 | 12 | 7 | 6 | 540 | 310 | 380 | 215/40R18 |
| 18C-2 | 356 | 23 | 12 | 7 | 6 | 540 | 310 | 380 | 215/40R18 |
| 18E-1 | 356 | 23 | 12 | 7 | 6 | 540 | 345 | 415 | 245/45R18 245 255/45ZR18 235/50R18 |
| 18E-2 | 356 | 23 | 12 | 7 | 6 | 540 | 345 | 415 | 215/55R18 |
| 18F-1 | 356 | 23 | 12 | 7 | 5 | 585 | 300 | 405 | 235/55R18 |
| 18F-2 | 356 | 23 | 12 | 7 | 5 | 585 | 300 | 405 | 235/55R19 |
| 18H | 356 | 23 | 12 | 7 | 4.5 | 665 | 380 | 538 | 275/65/70R18 |
| 18G-1 | 356 | 24 | 12 | 8 | 4.5 | 610 | 380 | 485 | 225/55R18 225/60R18 245/60R18 |
| 18G-2 | 356 | 24 | 12 | 8 | 4.5 | 610 | 380 | 485 | 245/60R18 255/55R18 |
| 18I-1 | 356 | 24 | 12 | 8 | 4.5 | 610 | 410 | 515 | 265/60R18 |
| 18I-2 | 356 | 24 | 12 | 8 | 4.5 | 610 | 410 | 515 | 265/60R18 |
| MSA18-S-285 | 356 | 21.5 | 12 | 8 | 4.5 | 515 | 232 | 285 | 165/40R18 |
| MSA18-S-240 | 356 | 21 | 12 | 6 | 3.2 | 460 | 230 | 250 | |
| MSA18-440/4.5 | 356 | 23 | 12 | 8 | 4.5 | 538 | 360 | 440 | 305/30ZR18 |
| MSA18-480/4.5 | 356 | 23 | 12 | 8 | 4.5 | 532 | 400 | 480 | 315/40ZR18 |
| MSA18-Y-304/4.2 | 356 | 23 | 12 | 7 | 4.2 | 485 | 262 | 304 | 205/35R18 |
| RB1801 | 356 | 23 | 12 | 7 | 4.3 | 490 | 306 | 345 | 265/35R18 |
| RB18-595 | 356 | 23 | 12 | 8 | 5 | 686 | 458 | 595 | 35*12.5R18LT |
| JR1801 | 356 | 24 | 12 | 8 | 4.5 | 528 | 322 | 385 | 265/35R18 |
| B15×350×620 | 357 | 22 | 14 | 9 | 4.5 | 628 | 370 | 480 | |
| B15×370×620 | 357 | 22 | 14 | 9 | 4.5 | 628 | 370 | 500 | 245/50R20 |
| T18/340T | 360 | 24.8 | 13.4/11.9 | 11 | 4 | 600 | 252 | 340 | |
| 18-S-430 | 360 | 24.8 | 13.4/11.9 | 11 | 4.2 | 560 | 385 | 440 | 235/55R18 235/50R18 |
| 18-S-450 | 360.4 | 24.8 | 13.4/11.9 | 11 | 4.2 | 590 | 406 | 466 | 265/60R18 255/55R18 235/65R18 |
| RBYYG18-1 | 361 | 23 | 12 | 8.5 | 4.2 | 568 | 360 | 452 | 245/50R18 |
| 19-S-422 | 380 | 23 | 12 | 11 | 4.5 | 570 | 370 | 422 | 235/55R19 |
| MSA19-Y-320 | 380 | 34 | 14 | 8 | 4.2 | 503 | 286 | 320 | 215/5ZR19 |
| MSA19-Y-352 | 380 | 24 | 14 | 8 | 4.2 | 460 | 340 | 352 | 225/35ZR19 |
| MSA19-Y-355 | 380 | 24 | 14 | 8 | 4.2 | 520 | 310 | 355 | 245/35ZR19 |
| MSA19-Y-382 | 380 | 24 | 14 | 8 | 4.2 | 522 | 340 | 382 | 275/35ZR19 |
| RB19-472 | 380 | 23 | 12.5 | 8 | 4.7 | 638 | 380 | 472 | 245/55R19 |
| RB1901 | 380 | 24 | 12.7 | 7 | 5.5 | 506 | 320 | 352 | 215/225/35R19 |
| RB1901B | 380 | 24 | 12.7 | 7 | 4.5 | 506 | 320 | 352 | 215/35ZR19 |
| RB1902 | 380 | 24 | 12.7 | 7 | 5 | 506 | 355 | 387 | 225/30R20 245/40R19 |
| RB1903 | 380 | 24 | 12.7 | 7 | 4.2 | 518 | 350 | 400 | 255/35R19/265/275/35R19 |
| RB1904 | 380 | 24 | 12.7 | 7 | 5 | 525 | 265 | 346 | 235/35R19 |
| RB1906 | 380 | 23 | 12.7 | 7 | 4.2 | 540 | 330 | 385 | 225/35R19 245/40R19 255/40R19 |
| RB1907 | 380 | 23 | 12.7 | 7 | 4.2 | 570 | 360 | 435 | 275/40R19 245/50R19 245/45R20 275/40R20 |
| RB1908 | 380 | 23 | 12.7 | 9 | 4.5 | 624 | 390 | 493 | 275/55R19,255/55R19 |
| RB1909 | 380 | 24 | 12.7 | 7 | 4.2 | 530 | 350 | 415 | 245/45ZR19 255/35ZR19 265/35ZR19 275/30ZR19 |
| MSA19-Y-430/4.2 | 380 | 24 | 14 | 8 | 4.2 | 546 | 375 | 430 | 295/30ZR19 |
| MSA19-Y-478/4.2 | 380 | 24 | 14 | 8 | 4.2 | 583 | 395 | 478 | 315/35ZR19 |
| B20 | 396 | 24 | 14.7 | 7 | 6 | 550 | 360 | 399 | 245/35ZR20 245/45ZR20 255/30ZR20 |
| B20-B | 396 | 24 | 13 | 7 | 4.5 | 550 | 360 | 399 | 245/35ZR20 245/45ZR20 255/30ZR20 |
| D20 | 396 | 24 | 12.7 | 7 | 6 | 550 | 391 | 430 | 275/35R20 255/30R22 |
| E20 | 396 | 24 | 14 | 7 | 4.5 | 518 | 310 | 340 | 225/30ZR20 225/35ZR20 |
| E20-2 | 396 | 24 | 14 | 7 | 5 | 518 | 310 | 340 | 225/30ZR20 225/35ZR20 |
| F20 | 396 | 24 | 14 | 7 | 5 | 518 | 335 | 365 | 245/35ZR20 245/40ZR20 |
| F20-2 | 396 | 24 | 14 | 7 | 5 | 518 | 335 | 365 | 245/35ZR20 245/40ZR20 |
| P20 | 396 | 24 | 12.5 | 7 | 4.2 | 560 | 312 | 388 | 245/35R20 |
| G20 | 396 | 24 | 12.5 | 8 | 4.5 | 540 | 266 | 340 | 225/30R20 |
| G20-1 | 396 | 24 | 12.5 | 8 | 4.5 | 540 | 296 | 370 | 235/35R20 225/35R20 |
| M20 | 396 | 24 | 12.5 | 7 | 4.2 | 560 | 337 | 413 | 225/35R20/ 275/30R20 245/40R20 |
| MSA20-Y-404/4.5 | 396 | 24 | 14 | 8 | 4.5 | 534 | 360 | 404 | 255/35R20 |
| N20 | 396 | 24 | 12.5 | 8 | 4.5 | 565 | 355 | 435 | 275/30R20，285/30R20 |
| N20-2 | 396 | 24 | 12.5 | 8 | 4.5 | 565 | 370 | 450 | 275/30R20，285/30R20 |
| A20 | 403 | 24 | 12.7 | 8 | 6 | 590 | 390 | 446 | 255/50R20 |
| A20-2 | 403 | 24 | 12.7 | 8 | 4.5 | 590 | 390 | 446 | 255/50R20 |
| C20 | 403 | 24 | 12.7 | 8 | 6 | 633 | 440 | 510 | |
| J20 | 403 | 22 | 12.9 | 6 | 5/4.5 | 596 | 370 | 445 | 275/40R20 275/45R20 |
| K20 | 403 | 24 | 12.9 | 6.56 | 5/4.5 | 640 | 390 | 500 | 275/55R20 285/55R20 |
| H20 | 403 | 24 | 14 | 8 | 4.5 | 532 | 310 | 356 | 225/35ZR20 245/30R20 235/30R20 |
| H20-1 | 403 | 24 | 14 | 8 | 4.5 | 532 | 320 | 366 | 225/30ZR20 225/35ZR20 |
| SR20-01 | 404 | 23.45 | 12.8 | 7.7 | 6 | 610 | 335 | 425 | |
| JS2445 | 410 | 25 | 14.2 | 8 | 4.5 | 555 | 340 | 428 | |
| JS2545 | 410 | 25 | 14.2 | 8 | 4.5 | 570 | 346 | 407 | 245/30R22 |
| JS2645 | 410 | 25 | 14.2 | 8 | 4.5 | 629 | 370 | 491 | 265/50R20 |
| JS2150 | 410 | 25 | 14.2 | 8 | 5 | 620 | 361 | 455 | 275/45R20 |
| RB20-516 | 410 | 21 | 12 | 8 | 5 | 675 | 430 | 516 | 275/55R20 275/60R20 33*12.5R20 |
| RB20-560 | 410 | 21 | 12 | 8 | 5 | 675 | 474 | 560 | 35*12.5R20LT |
| RBYYG20-1 | 412 | 24 | 12 | 8 | 4.2 | 574 | 330 | 397 | 245/40R20 275035R20 |
| RBYYG20-2 | 412 | 24 | 12 | 8 | 4.2 | 574 | 390 | 457 | 305/35R20 |
| RBYYG20-3 | 412 | 24 | 12 | 8 | 4.2 | 560 | 370 | 427 | 285/30R20 |
| A21 | 428 | 25 | 14.2 | 8 | 4.2 | 572 | 340 | 400 | 265/30R21 |
| B21 | 428 | 25 | 14.2 | 8 | 4.2 | 572 | 364 | 434 | 265/35R21 |
| C21 | 428 | 25 | 14.2 | 8 | 4.2 | 610 | 340 | 422 | 295/40R21 |
| RB22-1 | 454 | 24 | 12.7 | 8 | 4.5 | 540 | 335 | 355 | 245/25R22 |
| RB22/24-1 | 454 | 24 | 12.9 | 8 | 5.5 | 650 | 440 | 493 | 305/40R22.305/35R24 |
| RB22/24-1B | 454 | 24 | 12.5 | 8 | 4.5 | 650 | 440 | 493 | 285/45R22 295/40R22 305/35R22 305/40R22 305/45R22 |
| RB22/24-2 | 454 | 24 | 12.7 | 8 | 5.5 | 608 | 390 | 430 | 275/25R24 295/25R22 |
| RB22/24-2B | 454 | 24 | 12.7 | 8 | 4 | 608 | 390 | 430 | 275/25R24 295/25R22 |
| RB22/24-3 | 454 | 24 | 12.7 | 8 | 5 | 575 | 320 | 360 | 245/30R22 |
| RB22/24-3B | 454 | 24 | 12.7 | 8 | 4.2 | 575 | 320 | 360 | 255/30R22 |
| RB22/24-4 | 454 | 24 | 12.7 | 8 | 5 | 575 | 370 | 410 | 285/35R22 |
| RB22/24-5 | 454 | 24 | 12.9 | 8 | 4.5 | 650 | 465 | 518 | 33*12.5R22 35*12.5R22 |
| RB265/25ZR22 | 454 | 24 | 12.7 | 8 | 4.2 | 575 | 350 | 395 | 265/65ZR22 265/35R22 |
| RB22-424 | 454 | 24 | 12.7 | 8 | 4.2 | 590 | 385 | 424 | 315/25R22 |
| RB22-330 | 454 | 24 | 12.7 | 8 | 4.2 | 578 | 285 | 330 | |
| RB24/26-1 | 470 | 24 | 14 | 8 | 5.5 | 688 | 420 | 480 | 285/40R24 275/30R26 |
| RB24/26-2 | 470 | 24 | 14 | 8 | 5.5 | 688 | 452 | 512 | 295/30R26 305/30R26 |
| RB24/26-3 | 470 | 24 | 14 | 8 | 5.5 | 688 | 492 | 552 | 315/35R26 |
| RB24-408 | 504 | 24 | 13 | 8 | 4.5 | 630 | 370 | 408 | 295/25ZR24 |
| RB24-385 | 504 | 24 | 13 | 8 | 4.5 | 625 | 347 | 385 | 275/25ZR24 |
| RB24-354 | 504 | 24 | 13 | 8 | 4.5 | 625 | 316 | 354 | 245/25ZR24 |
| RB24-1 | 505 | 24 | 12.7 | 6.5 | 4.2 | 620 | 340 | 380 | 245/30R24 255/30R24 255/25R24 275/25R24 |
| RB24-2 | 505 | 24 | 12.7 | 6.5 | 4.5 | 665 | 386 | 455 | 295/35R24 305/35R24 |
| RB24-5 | 505 | 24 | 12.7 | 7 | 3.8 | 615 | 340 | 360 | 225/25R24 |
| RB26-3 | 505 | 24 | 12.7 | 7 | 5 | 640 | 390 | 440 | 275/35ZR24 295/25ZR26 |
| RB26-5 | 555 | 25.4 | 12.7 | 7 | 4.5 | 672 | 340 | 376 | 275/25R26 |
| RBYT26-1 | 555 | 24 | 14 | 7 | 5 | 680 | 410 | 440 | 305/30ZR26295/30R26 |
| RB26-4 | 555 | 24 | 12.7 | 7 | 4 | 635 | 380 | 384 | 255/30R26 275/25ZR26 |
| RB28-1 | 555 | 24 | 14.7 | 7.5 | 5 | 680 | 405 | 440 | 305/30ZR26 295/30ZR26 295/30R26 |
| RB28-2 | 555 | 24 | 14.7 | 7.5 | 5 | 680 | 430 | 465 | 305/30ZR26 275/25ZR28 295/25ZR28 |
| JR2801 | 555 | 24 | 12 | 8 | 4 | 711 | 420 | 475 | |
| RB32-1 | 590 | 24 | 14.7 | 8 | 5 | 776 | 468 | 555 | 280/85R28 |
| JR12-00 | 214.5 | 15.2 | 12.75 | 6/7.25 | 3.7 | 466 | 249 | 370 | |
| JR12-02 | 214.5 | 15.2 | 12.75 | 6/7.25 | 3.7 | 502 | 245.6 | 402 | |
| JR12-05 | 214.5 | 15.2 | 12.75 | 6/7.25 | 3.8 | 560 | 293.8 | 505 | |
| JR12-08 | 214.5 | 15.2 | 12.75 | 6/7.25 | 3.7 | 474 | 285 | 434 | |
| JR12-09 | 214.5 | 15.2 | 12.75 | 6/7.25 | 3.7 | 495 | 286.4 | 453 | |
| JR12-11 | 214.5 | 15.2 | 12.75 | 6/7.25 | 3.7 | 537 | 303.4 | 506 | |
| JR12-18 | 214.5 | 15.2 | 12.75 | 6/7.25 | 3.7 | 480 | 302 | 457 | |
| JR12-24 | 214.5 | 15.2 | 12.75 | 6/7.25 | 3.7 | 474 | 264 | 415 | |
| MR11-02 | 237 | 15.4/13.6 | 10/14.5 | 7.5 | 3.7 | 471 | 220 | 404 | |
| MR11-03 | 237 | 15.4/13.6 | 10/14.5 | 7.5 | 3.7 | 430 | 208 | 357 | |
| JR13-01 | 240 | 16.2/15.4 | 15 | 7.5/8.75 | 3.7 | 550 | 310 | 480 | |
| JR13-03 | 240 | 16.2/15.4 | 15 | 7.5/8.75 | 3.7 | 602 | 365.6 | 578 | |
| JR13-04 | 240 | 16.2/15.4 | 15 | 7.5/8.75 | 3.7 | 583 | 385.6 | 587 | |
| JR13-08 | 240 | 16.2/15.4 | 15 | 7.5/8.75 | 3.7 | 570 | 404 | 618 | |
| JR13-11 | 240 | 16.2/15.4 | 15 | 7.5/8.75 | 3.7 | 525 | 331 | 476 | |
| MR12-03 | 257 | 15/13.6 | 10/14.5 | 7.5 | 3.7 | 510 | 218.6 | 423 | |
| MR12-07 | 257 | 15/13.6 | 10/14.5 | 7.5 | 3.7 | 572 | 295 | 405 | |
| MR12-09 | 257 | 15/13.6 | 10/14.5 | 7.5 | 3.7 | 495 | 235.4 | 453 | 215/70R14 |
| MR12-10 | 257 | 15/13.6 | 10/14.5 | 7.5 | 3.7 | 516 | 241.4 | 470 | 195/60R15 |
| MR12-11 | 257 | 15/13.6 | 10/14.5 | 7.5 | 3.7 | 537 | 252.4 | 510 | |
| MR12-32 | 257 | 15/13.6 | 10/14.5 | 7.5 | 3.7 | 519 | 161 | 397 | |
| MR12-33 | 257 | 15/13.6 | 10/14.5 | 7.5 | 3.7 | 638 | 185 | 528 | |
| MR12-31 | 257 | 15/13.6 | 10/14.5 | 7.5 | 3.7 | 490 | 228.5 | 451 | |
| MR13-05 | 280 | 18/15.4 | 10/14.5 | 9/8.75 | 4.8 | 624.8 | 330.4 | 630 | |
| MR13-07 | 280 | 16/15.9 | 11/15 | 9/8.75 | 4.2 | 674 | 378 | 719 | |
| MR13-08 | 280 | 18/15.4 | 11/15 | 9/8.75 | 4.8 | 570 | 334 | 609 | |
| MR13-21 | 280 | 18/15.4 | 10/15 | 9/8.75 | 3.7 | 548 | 274 | 497 | |
| MR12-05 | 148/257 | 15/13.6 | 10/14.5 | 7.58 | 3.7 | 560 | 242.8 | 493 | |
| ST-HB275/25R24-1 | 452 | 24 | 12.5 | 7 | 4.25 | 650 | 320 | 416 | 275/25R24 |
| ST-HAB14-1-1 | 240 | 14.5 | 16 | 9 | 5.5 | 525 | 310 | 500 | 195/70R14 205/70R14 |
| ST-HAB14-2-1 | 285 | 14.5 | 16 | 9 | 5.5 | 560 | 312 | 515 | 215/75R14C |
| ST-HAB16-1-1 | 285 | 14.5 | 16 | 9 | 6 | 650 | 312 | 570 | 7.00R16LT |
| ST-HB19-1-1 | 380 | 24 | 12.5 | 7 | 5 | 510 | 350 | 380 | 225/30R20 245/40R19 |
| ST-MR20-2 | 370/145 | 21.5/27.7 | 23.1/16.75 | 14.5/14.25 | 7 | 807 | 415 | 836 |
BOM Type Bladders for PCR/LTR Tires 1/11:
BOM Type Bladders for PCR/LTR Tires 2/11:
BOM Type Bladders for PCR/LTR Tires 3/11:
BOM Type Bladders for PCR/LTR Tires 4/11:
BOM Type Bladders for PCR/LTR Tires 5/11:
BOM Type Bladders for PCR/LTR Tires 6/11:
BOM Type Bladders for PCR/LTR Tires 7/11:
BOM Type Bladders for PCR/LTR Tires 8/11:
BOM Type Bladders for PCR/LTR Tires 9/11:
BOM Type Bladders for PCR/LTR Tires 10/11:
BOM Type Bladders for PCR/LTR Tires 11/11:
Inquire
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
